A REVOLUTIONARY STEP IN LASER MEASUREMENT

The new GapGun 6, a handheld and robotic laser measurement system

The new GapGun 6 is a non contact laser measurement system capable of a wide variety of profile measurements. The system has a repeatable accuracy of 0.01mm and a measurement cycle of just one second. With greatly improved speed, ease of use, portability, accuracy and ruggedness, GapGun 6 measures gap and flush, radius, edge break, burr, countersink, scratch, weld, seal, angle and more, as the ultimate quality inspection tool. Proven technology, used worldwide by most major automotive and aerospace OEMs.

GapGun Specifications

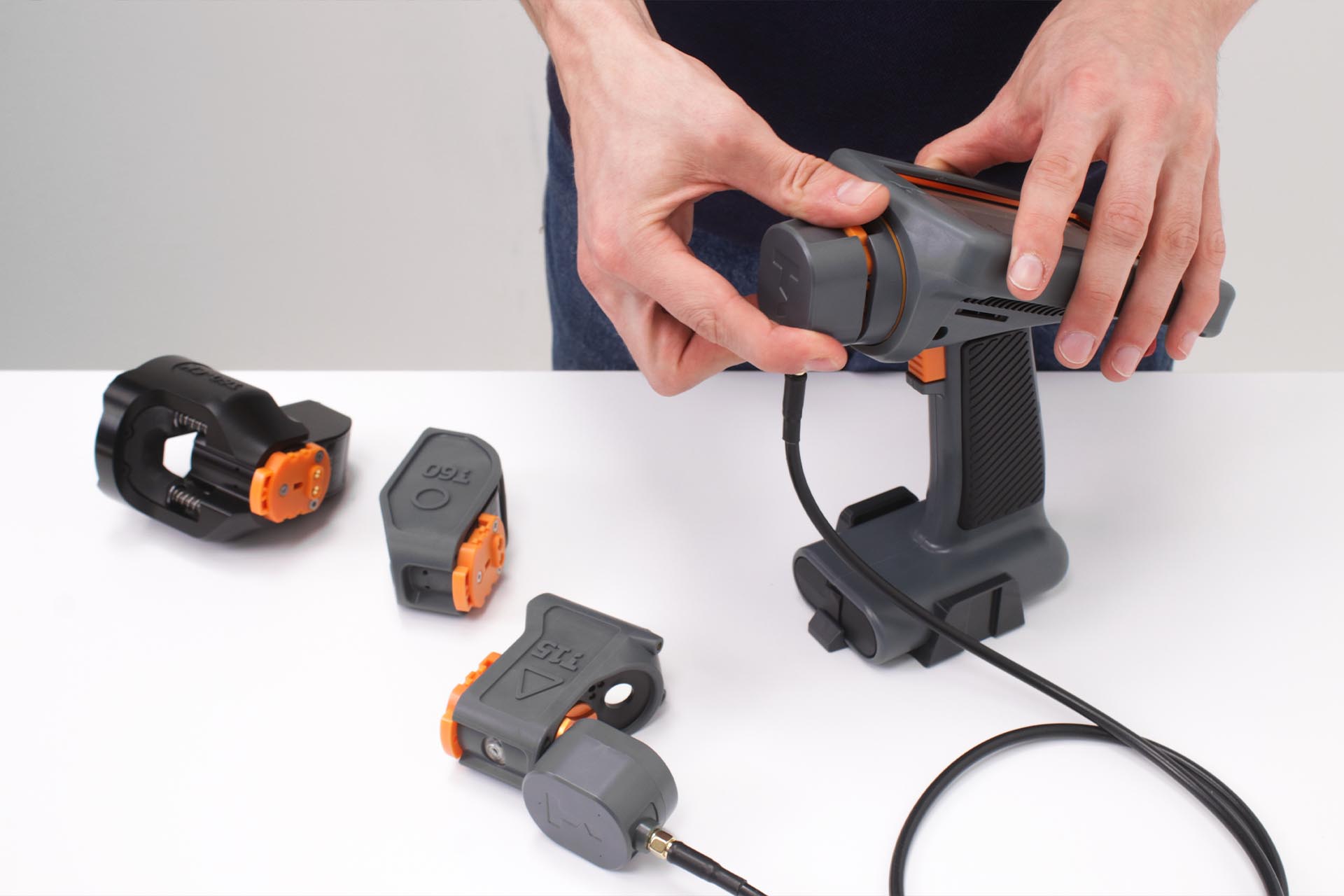

VChange allows the operator to remove, swap and reattach sensor heads, in just seconds, making multiple sensor use on the shop floor easier than ever before. This technology enables the operator to use the most suitable sensor for the job. Without stalling the process.

SENSOR RANGE

GapGun 6 and Vectro data collectors can be paired with a variety of sensors which vary in their capabilities. An optimal set up can be configured for every application. A specialized, self-centering countersink sensor will be released in the future for the GapGun 6 and Vectro. For more information or a live demo of the GapGun 6 countersink capabilities, please contact us.

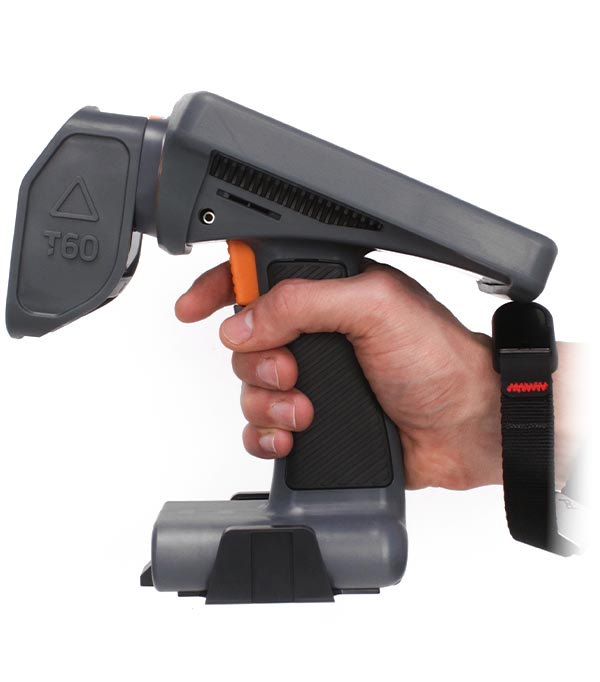

T60: ALL-ROUND

Typical feature size range: 0.3mm – 25mm
Uses a violet laser
For universal use on a wide range of surfaces
A single solution for the automotive, aerospace, energy, industry and white goods sectors

T15: HIGH RESOLUTION

Typical feature size range: 0.1mm – 5mm
Uses a violet laser
Available in V (universal sensor) and M series (specialised sensor with filter for improved performance on bright machine metal, turbine components, high reflective surfaces)
Scratches, defects, fasteners, chamfers and profiles, turbine blades, small gap and flush, radii

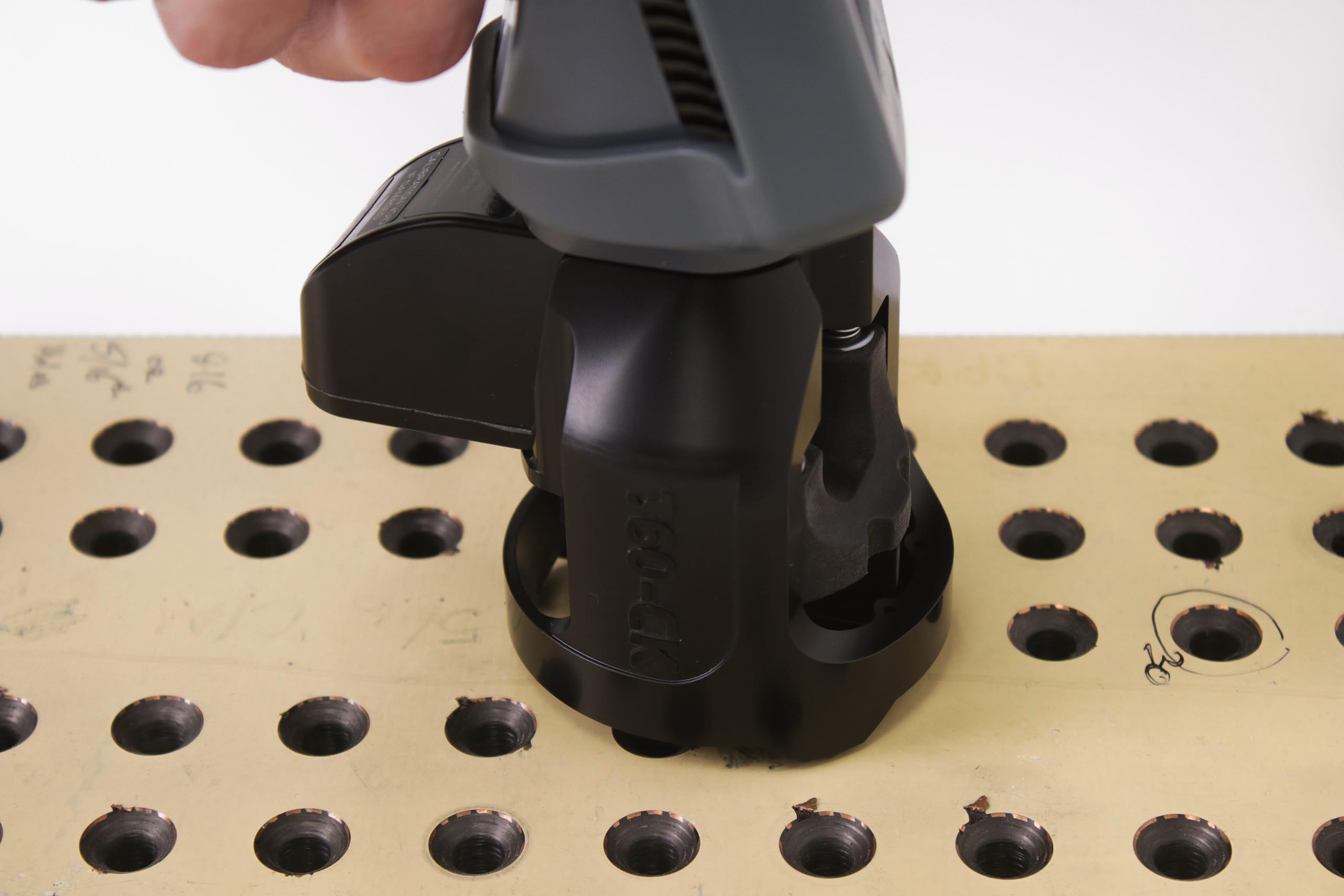

T60-CK: COUNTERSINK

Typical feature size range: 5mm – 25mm
Uses a violet laser
For universal use on a wide variety of countersinks in different sizes and materials
Self-centering, industry tested mechanism

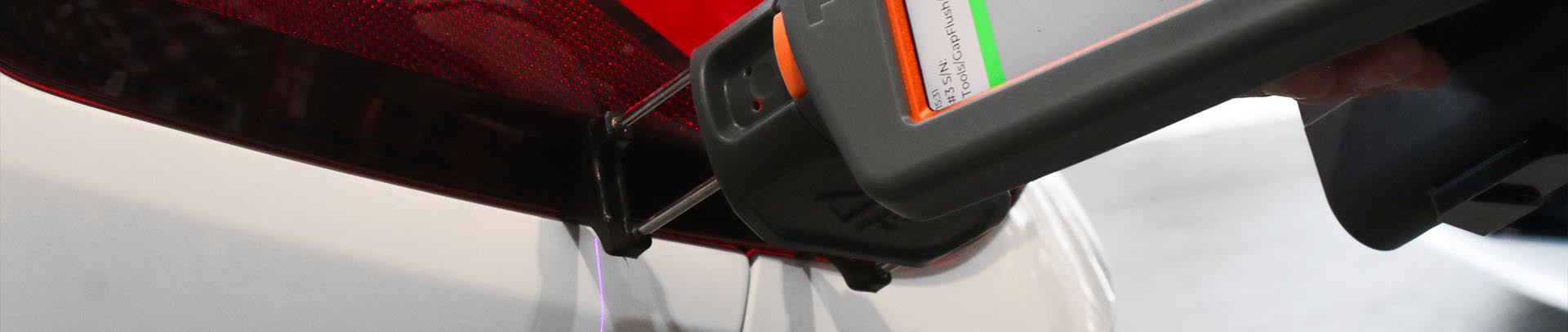

VIOLET SENSOR

The new violet series sensor has a laser wavelength of 405nm and is compatible with virtually every type of automotive finish. Including plastic, bare metal, fabrics, chrome, polycarbonate (clear, red, other colours) and tinted glass.

METALLIC SENSOR

The M series sensor with violet laser and specialised filter has highly improved performance while measuring bright machined metal, turbine components, bright chrome and other highly reflective surfaces.

Vectro2

AUTOMATION AND PRECISION

Vectro automates the non contact measurements of the GapGun 6. Simple, fast and with high repeatability, without the human factor playing any role in the results of your measurement.

VERSATILE AND COMPATIBLE

Vectro works either robot mounted or in fixtured applications. The system includes a mounting plate that can be attached to your choice of robot.

Vectro Specifications

REDUCE COSTS AND INCREASE PRODUCTIVITY

Vectro improves productivity, enables greater throughput, cuts inspection cost and reduces rework. All of this with the added benefit of improved quality.

A solution for every measurement

The GapGun 6 is both versatile and accurate.

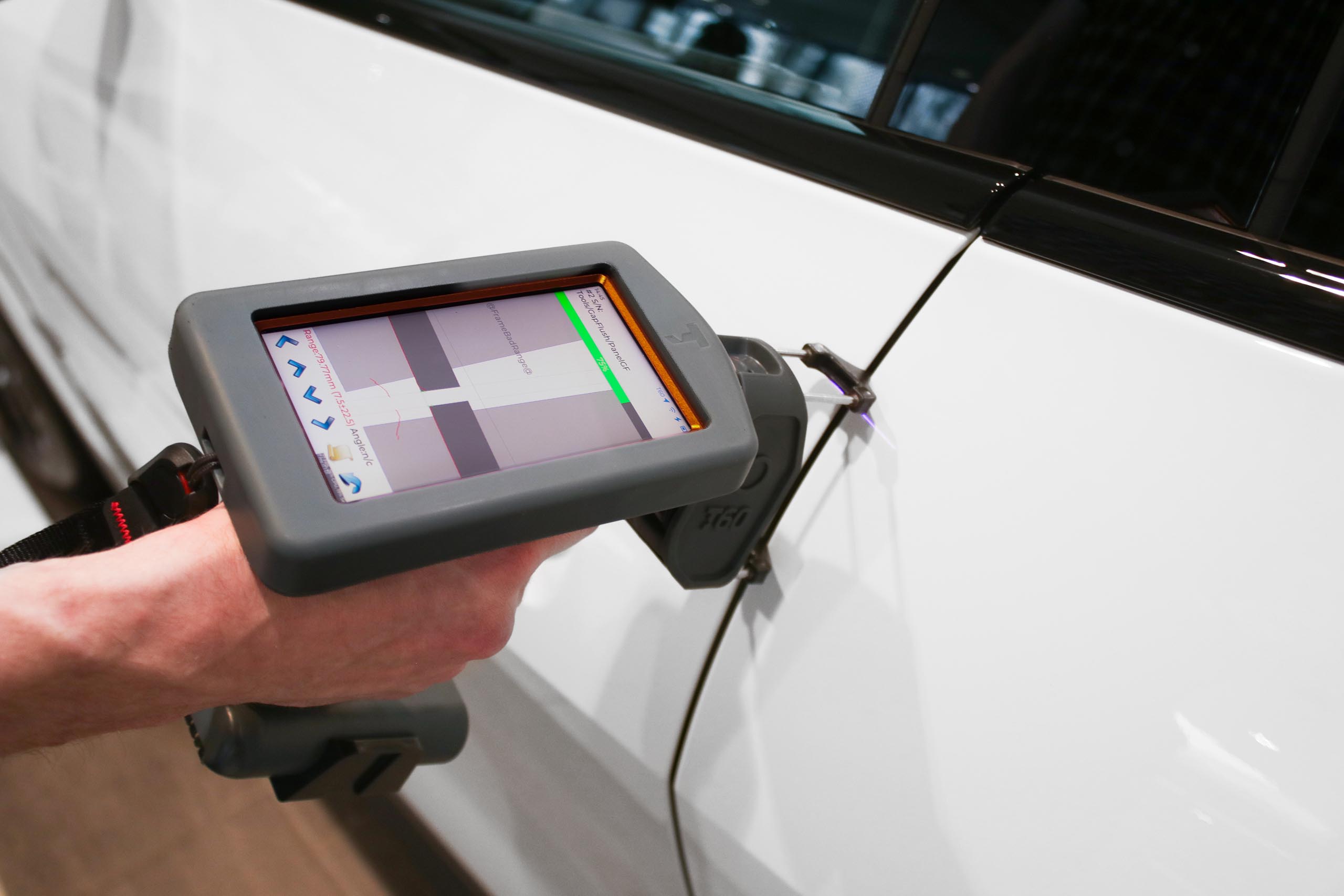

GAP & FLUSH

RADII

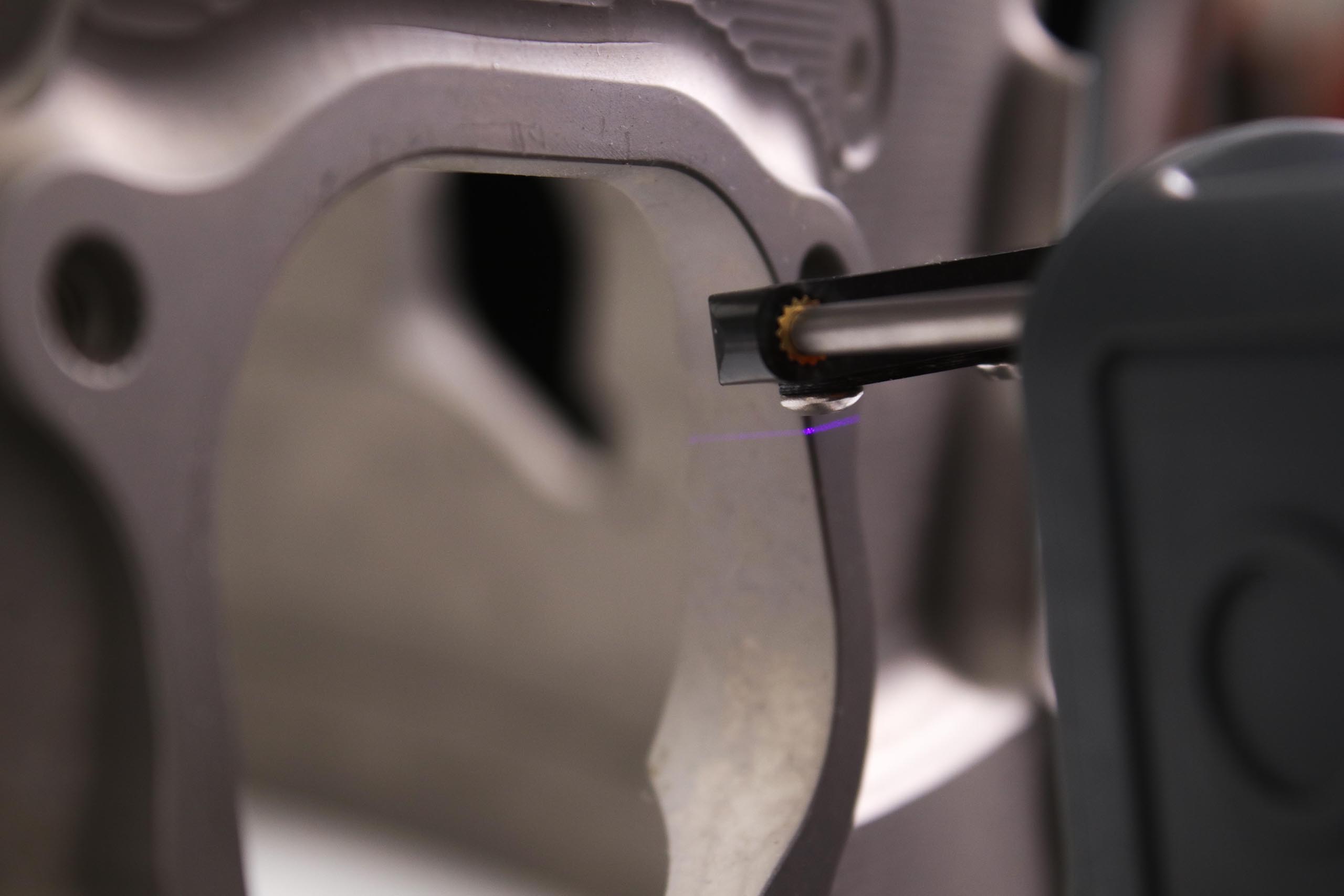

EDGE BREAK

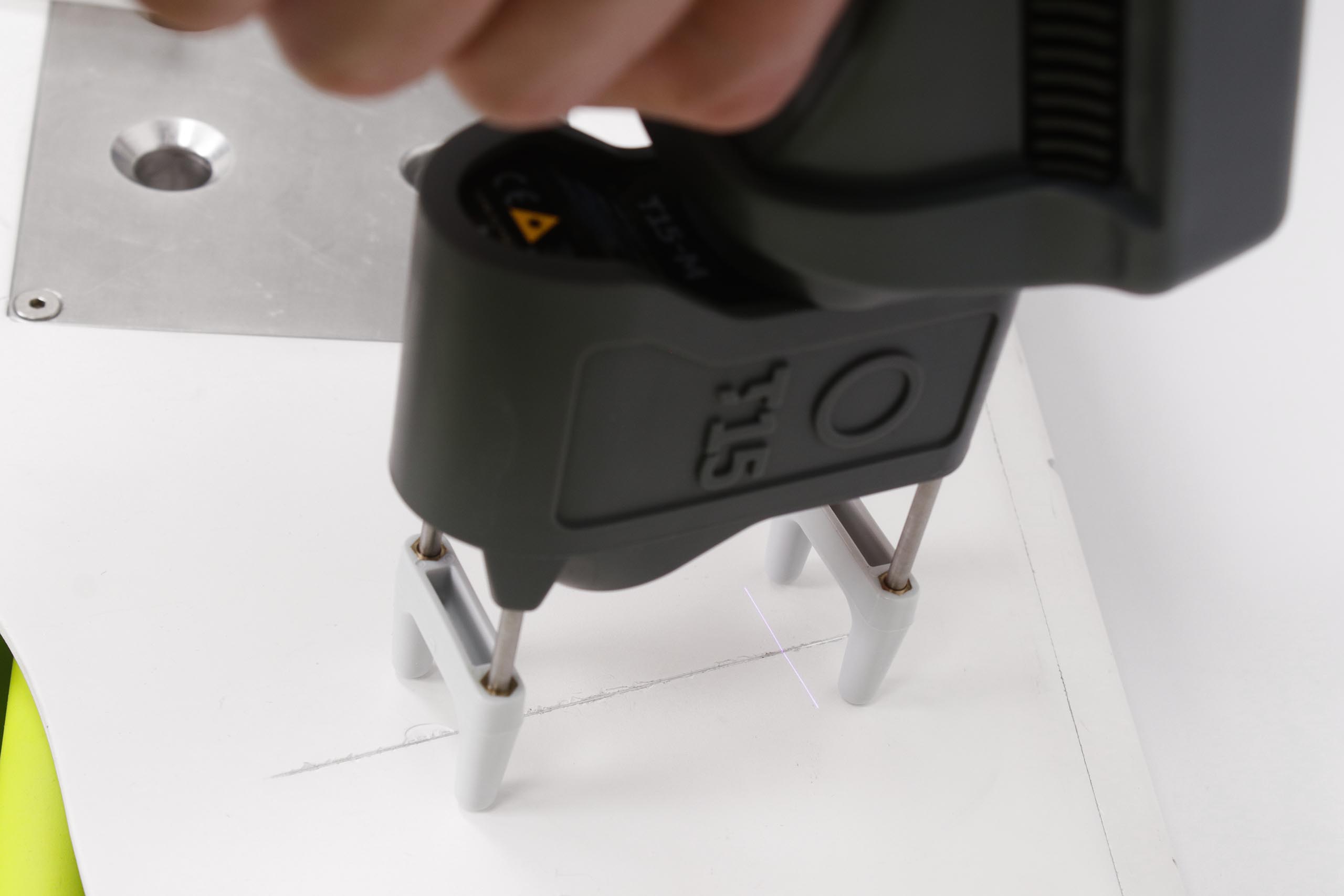

SCRATCHES

COUNTERSINK

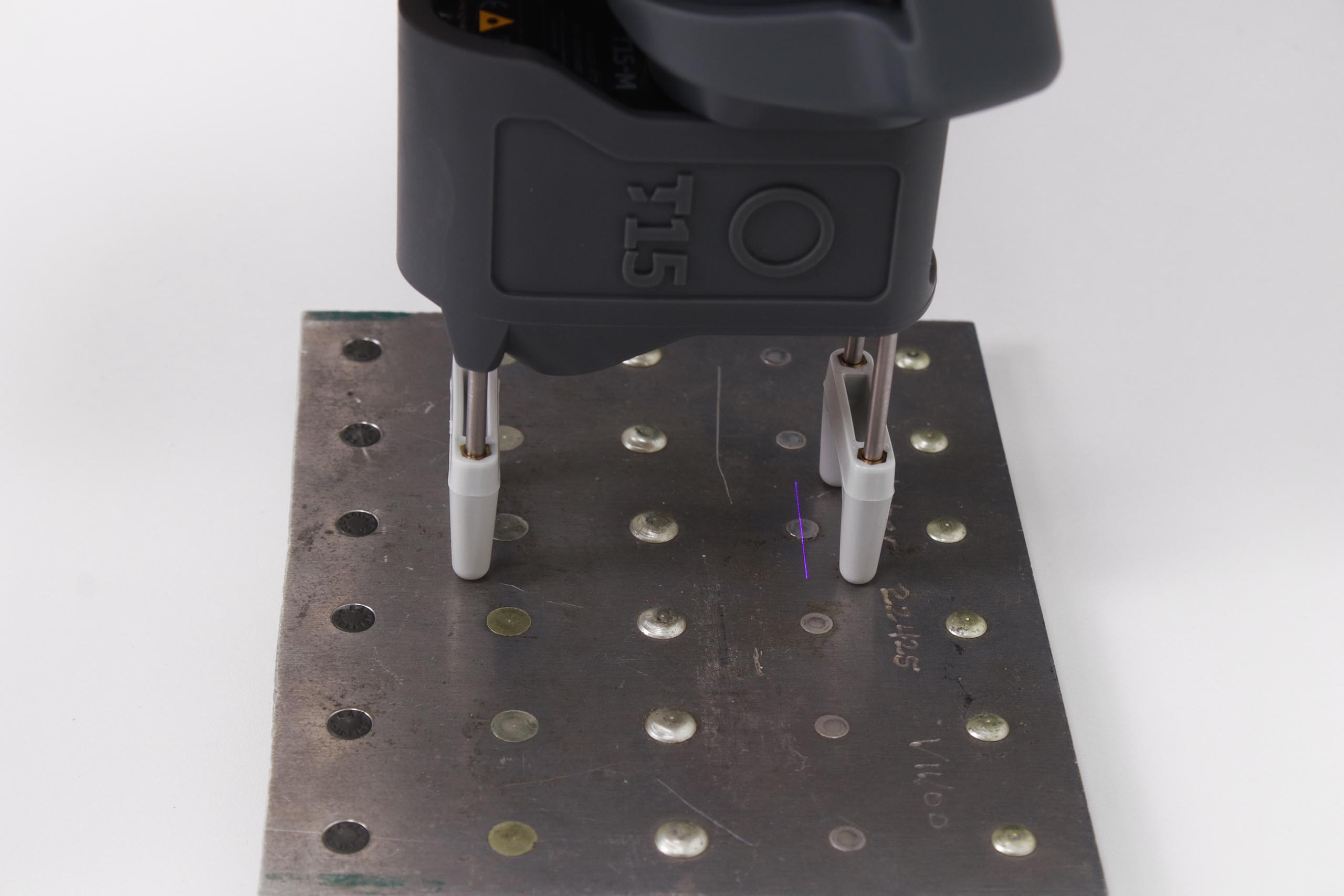

FASTENERS

WELD & SEAL

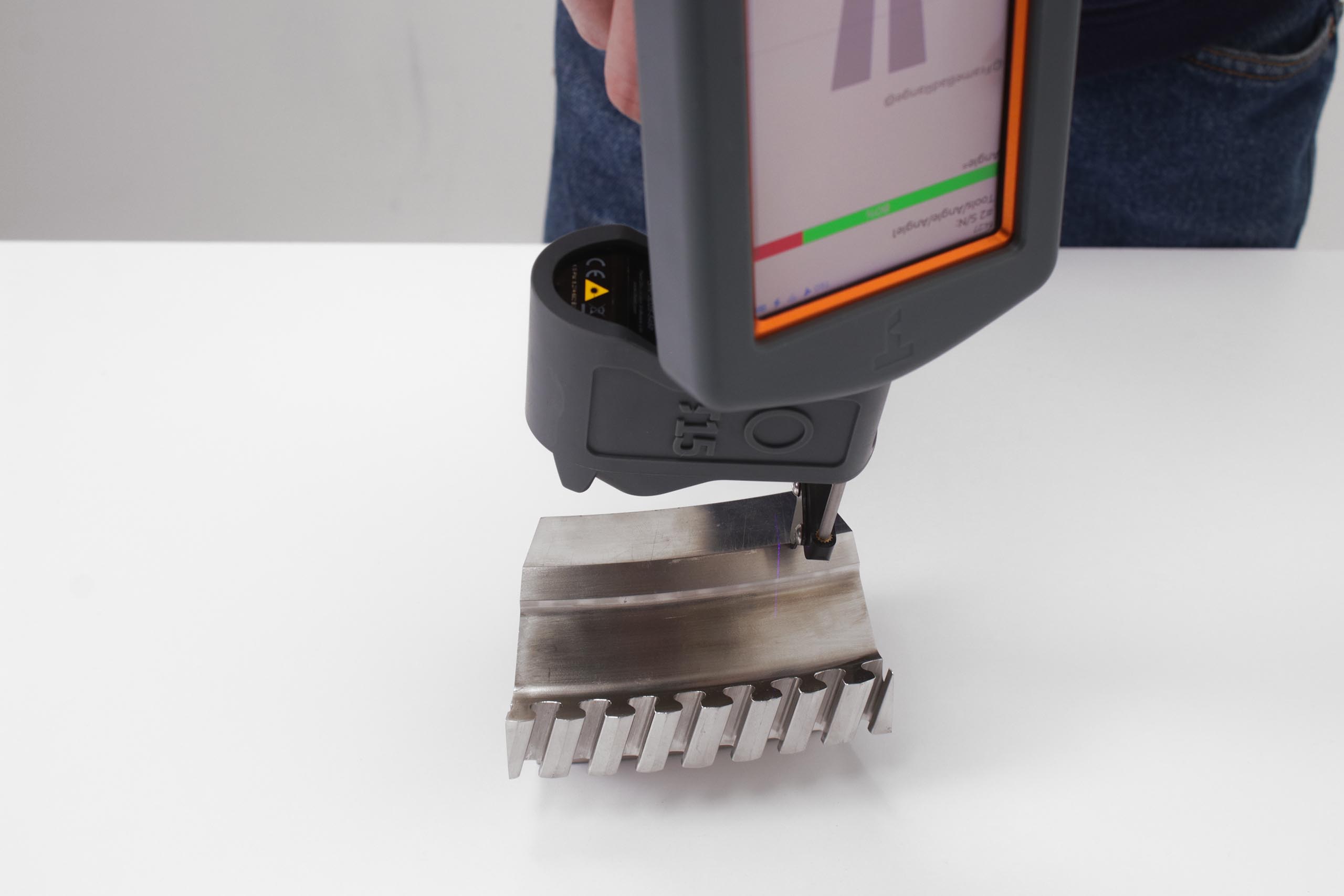

ANGLE

Seamless software

The GapGun 6 and its software works for you, not against you.

Measurement and inspection software for GapGun profile measurement systems.

Brochure

Manual and interactive analyses of measurements.

Brochure

Adds custom .NET functionality to your GapGun 6 and Vectro systems.

Shows real-time measurement results on overhead displays.

A solution for every industry

The GapGun 6 has proven itself in a wide variety of industries

Automotive

The GapGun 6 is an accurate and repeatable gap and flush measurement system for any and all panels on a vehicle. For both interior, exterior and on any type of material. It is able to measure the most complex surfaces, quickly, easily and repeatably. GapGun 6 will pass MSA requirements, where other techniques and solutions typically fail. With its highly flexible and powerful software GapGun 6 is able to measure most complex surfaces.

Aerospace

The dimensions of fasteners are key to the structural safety of the aircraft and to fuel efficiency by reducing drag or making surfaces aerodynamically efficient. In the production of aircraft, the size of rivets and fastener holes needs to be consistent and measurable. GapGun 6 effortlessly measures countersinks, panel and door fitting, turbine blades, machined engine parts, wing leading edges, fasteners and more.

Energy

Metrology needs in the Energy market are growing due to renewal growth with electric cars, battery manufacturing and wind turbine blades. GapGun 6 offers a perfect, repeatable and accurate solution to manage those challenges. For the past ten years, the GapGun 6 has been used by the UKAEA Remote Applications in Challenging Environments department to facilitate the development of nuclear fusion by speeding up MRO processes of the world’s largest experimental reactor.

Industry

Within the industrial sector the GapGun 6 guarantees quality and consistency during the production process. Quality inspection speed can be increased greatly when combined with Vectro. Measurement are needed in a wide range of industries such as complex machines, electronic components, whitegoods and medical manufacturing processes. GapGun 6 offers flexibility of usage and the versatility and precision needed in these varying applications.
